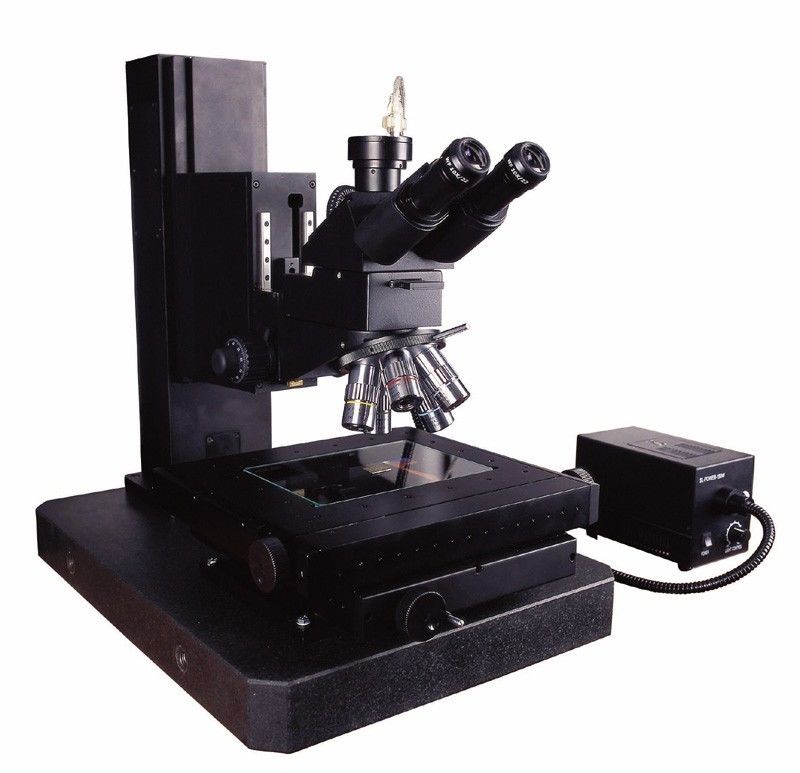

CX-6 Measurement Microscope China Manufacturer

Product Details:

Place of Origin:	Made in China

Payment & Shipping Terms:

Minimum Order Quantity:	NON
Price:	NON
Packaging Details:	STANDARD EXPORTING PACKING
Delivery Time:	ONE MONTH
Payment Terms:	T/T
Supply Ability:	1000 per month

Contact Now

Measurement  microscope  is  widely  used  for  crystal,  integrated  circuit(IC)  examination  and  exact  measurement.It  is  supplied  with  Cold  light  fiber  reflected  illuminator  ,  imaging  and  viewing  system,  polarized  imaging  system.

  Specifications

Optical  Imaging  System

    ------Infinitive  Optical  systam,  Tube  Lens  Focal  Length  200mm

   ------ Compensation  Free  Trinocular  Tube,  Inclined  at  30°,  Interpupillary  Distance  55-75mm

    ------High  Point  and  Wide  Field  Eyepiece  WF10/22

------Long  Working  Distance,  Plan  Apo  Objectives  2X/0.055,  5X/0.14,  10X/0.28,  20X/0.29,  50X/0.42

------ Quintuple  Nosepiece

Focus  Adjustment  System

-----Coaxial  Coarse  &  Fin  Focus  Adjustment  System,  Fine  Division  0.002mm

Stage

------ 6″x8″Double  Layers  Mechanical  Stage,  Move  Range  153x204mm.

Three-dimensional  Measurement  System

-------Resolution:  1μm

-------Measurement  Exactitude:  ±(2+L/200)μm

------Repeatedly  Orientation  Exactitude:  2μm

Illumination  System

-------Cold  Light  Fiber  Reflected  Illnminator:  150W

--------Complete  Geometric  Measurement(Point,Line,Circle,  Arc  etc.)

--------Enactment,  Adjustment  of  Reference  Frame

--------Diversity  of  Display:  Conversion  of  Language,  Measure  and  Angle
