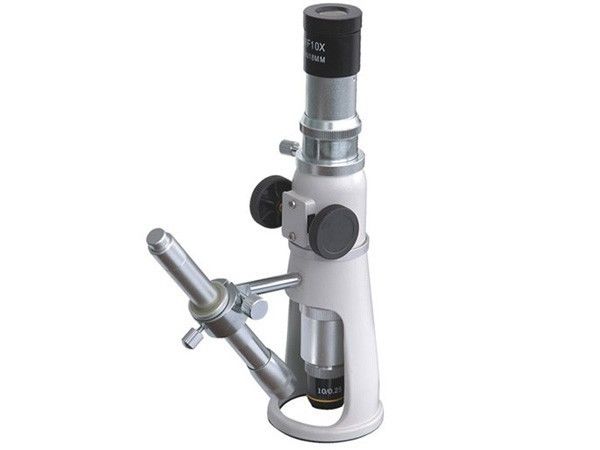

Portabele Measuring Microscope
It is widely used in spot inspecting and measuring in the factory and observation and research in Laboratory.It is specially suitabel for production locale inspecting for mechanical,paper making manufacture and print,textile industry,etc.This product is small and exquisite,novel designed and exquisite,novel designed and operation easy,also suitable for student’s experiment.
It is widely used in spot inspecting and measuring in the factory and observation and research in Laboratory.It is specially suitabel for production locale inspecting for mechanical,paper making manufacture and print,textile industry,etc.This product is small and exquisite,novel designed and exquisite,novel designed and operation easy,also suitable for student’s experiment.
| Specification | Model | |||
| VPM-100 | VPM-50 | VPM-40 | VPM-20 | |
| Total Magnification | 100X | 50X | 40X | 20X |
| Mechanical Tube Length | 160mm | |||
| Objective Magnification | 10X | 5X | 4X | 2X |
| Numerical Aperture(N.A.) | 0.25 | 0.12 | 0.10 | 0.05 |
| Working Distance(mm) | 7 | 18 | 18 | 18 |
| Eyepiece | WF10X,crosshair with reticule 0 1mm | |||
| Focusing Range | 30mm | |||
| Diameter of Viewing field in Eyepiece | ￠18mm | |||
| Diameter of base | ￠63mm | |||
| Height of Micriscope | 210mm | |||
| Weight of Micriscope | 0.65kg | |||
| lllumination | The pen type lamp,use2X7battery | |||
| Lnstrument size | 143mmX63mmX210mm | |||
