Name: VM-7148F2/2A Series Multi-education Microscope China Manufacturer
Brand: VANCO INDUSTRIES CO.,LTD
Availability: InStock

Home Products Multi-education microscope

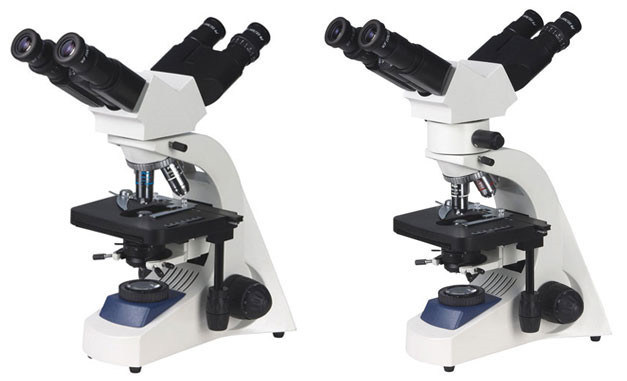

VM-7148F2/2A Series Multi-education Microscope China Manufacturer

Product Details:

Place of Origin:	Made in China

Payment & Shipping Terms:

Minimum Order Quantity:	NON
Price:	NON
Packaging Details:	STANDARD EXPORTING PACKING
Delivery Time:	ONE MONTH
Payment Terms:	T/T
Supply Ability:	1000 per month

Contact Now

Detailed Product Description

LED Cursor(Pointer)

In order to make the intercourse convenient between teacher and students, the microscope is equipped with LED cursor pointer to indicate image in the microscope viewing field, the pointer is Arrow type, and light intensity adjustable button is also eqipped. The pointer can be moved freely and any position of the image can be indicated.

Specificaon		Modle
Specificaon		XSZ-148F2	XSZ-148F2A
Viewing Head	Dual viewing Compensation Free binocular head(55mm-75mm)	●	●
Indicator	LED cursor(Pointer)		●
Eyepiece	WF10×/22mm	●	●
Objective	Infinity Achromatic 4×,10×,40×(s),100×(s)Oil	●	●
Stage	Double layer mechanical stage Stage Sixe:180mm×150mm Moving Range:75mm×50mm	●	●
Condenser	N.A.1.25 Abbe condenser with iris diaphragm and filter	●	●
Fcusing	Coaxial coarse & fine focusing adjustmen Fine focusing scale value 0.002mm	●	●
Light Source	Halogen bulb 6V/20W, AC 220V/110V Fine focusing scale value 0.002mm	●	●
Optional Accessory	Eyepiece:WF16×,WF20×,P16× Objective:20×,60(s)Infinity Semi-plan Objective:4×,10×,20×,40×(s),60×(s),100×(s) oilInfinity Plan Achromatic Objective:4×,10×,20×,40×(s),60×(s),100×(s)oil Phase Contrast Attachment Photography attchment and CCD Adapter 0.5×,0.57×,0.75× Compensation Free Binocular Head(48mm-75mm)
