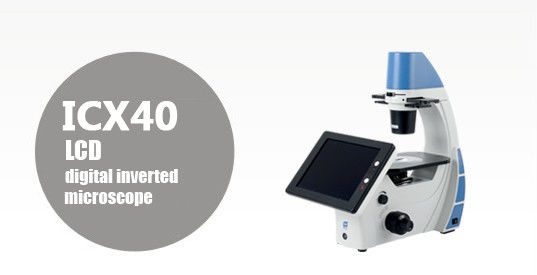

VD40DV LCD digital inverted microscope
■VD40LCD with 10 inches LCD, mignon remote-controller, large memory space, be handy for scientific research, teaching and demonstration.
■LCD with capture button, is convenient and fast to operate.
■5.0 mega pixels camera system, 1080P HD output, present a clear and bright microscopy world.
■LCD 45°~80° elevation angle adjustable, is comfortable for observation.
■Wide angle display system, avoid reflection from different angles.
■Based on users' practicality, with smart sensor and remote-controller, provide operating convenience and product stability for every user.
Specification of digital module
Specifications
■VD40LCD with 10 inches LCD, mignon remote-controller, large memory space, be handy for scientific research, teaching and demonstration.
■LCD with capture button, is convenient and fast to operate.
■5.0 mega pixels camera system, 1080P HD output, present a clear and bright microscopy world.
■LCD 45°~80° elevation angle adjustable, is comfortable for observation.
■Wide angle display system, avoid reflection from different angles.
■Based on users' practicality, with smart sensor and remote-controller, provide operating convenience and product stability for every user.
Specification of digital module
| LCD | 10 inches |
| Sensor size | 1/2.5 (Optical dimension) |
| White balance | auto white balance |
| Camera system | integrated 5.0 mega pixels CMOS system, 1080P HD output, slot for SD card |
| Resolution | Photo 2592X1944, 2048X1536, 1024X768; Video 670X480 |
| Image output | HDMI, USB2.0 |
| OS support | Windows XP above |
| Memory card | 4G (Max.16G) |
Specifications
| Optical System | Infinity color corrected optical system |
| Eyepiece | High eye-point wide field plan eyepiece PL10X/22mm (with/without reticle); PL15X/16mm |
| Objective | OLIPP2N long working distance infinity positive phase contrast plan objective 4X,10X,20X,40X |
| Nosepiece | Revolving quintuple nosepiece (Quadruple nosepiece for option) |
| Stage | Stage with glass plate and metal plate, size: 250X160mm. Slider clips, extension plate, coaxial mechanical ruler can be assembled. |
| Focusing Adjustment | Coaxial focus system with up-limited and tension adjustment. Coarse range: 9mm, fine range: 0.2mm, fine precision: 0.002mm. |
| Attachable Mechanical Stage | Coaxial focus system, range: 120X78mm, various holders can be assembled. |
| Holder | Slide holder; Teraseki holder; Petri dish holder |
| Condenser | N.A.0.3 Koehler illumination condenser with phase-adjustable slide plate, 72mm long working distance. Whole set can be rotated down. |
| Filter | Green interference filter, color temperature change filter, infrared eliminate filter (φ45mm) |
| Illumination | 5W warm color LED, 12V/ 3.3A external transformer, intensity adjustable. |
