Thank you for purchasing our V200 Digital Microscope, it is a slim type tool and can be easily used in different fields including:
1. Textile industrial for textile inspection
2. Printing inspection
3. Industrial inspection: PCB, Precision machinery…
4. Educational purpose
5. Hair examination
6. Skin examination
7. Microbiological observation
8. Jewelry & coin (Collections) inspection
9. Visual Assistance
10. Others
Specification
Image CMOS Sensor
Controller High Speed DSP (Driver Free available) Focus Range 15mm ~ 40mm
Snap Shot Software and Hardware
Video Capture Resolution 0.3M.
Built-in 8 White-light LED and adjustable illumination ensure the magnified images are clear and bright
Still Image Capture Resolution 640*480
Frame Rate 30 f/s under 600 LUX Brightness Digital Zoom 5X Sequence Mode
Brightness Control Manual adjustment
Magnification Range 25 X ~ 200X (Manually) Power Supply USB Port ( 5V DC )
USB 2.0 & USB 1.1 Compatible
Operation System Windows XP, Vista, Win 7 32 bit and 64 bit.
Language: English, Chinese and other language by selection
System Requirement: Pentium Computer with 700M Hz & above,
20M HD Space CD ROM Driver, 64MB RAM, Direct X VGA Card
CD disk Driver and Micro-Measurement Tool
Product dimension 112 mm ( L ) X 33 mm ( R ) Product net weight: 380g
Available color: Matting black, UV black; and other colors.
Notes before use
1. Don’t dissemble the digital Microscope or change the interior parts,
it can cause damage.
2. Don’t clean the Microscope with alcohol organic solvents
3. Don’t touch the lens with your fingers.
4. Avoid outdoor use if possible.
5. Storage temperature , 0°C ~ 40°C,Humidity:45%RH ~ 85RH%.
6. In case the product gets wet, leave PC connection immediately.
And do not dissemble or dry by hair dryer. Send to repair center if
the digit microscope was effected by liquid or other elements.
7. Measurement Data only for reference.

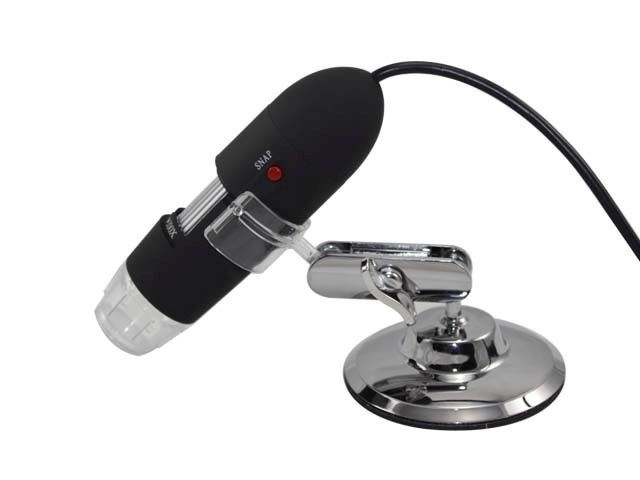

Product Outlook & Standard parts
1. Digital Microscope (1pcs)
2. USB 2.0 cable
3. Metal fixed Stand (1pcs)
4. CD ROM (Driver, Measurement software, User Manual)
Hardware system requirements
Windows 2000,XP,VISTA,WIN7 Pentium 1G, Celeron, AMD 1G & above, 128MB Memory, 150MB Hard Disc memory space,16-bit & above VGA ,CD-ROM, USB2.0 or USB1.1.
