Thank you for purchasing our V200+ WIFIWireless Digital Microscope; it can work on mobiledevice like tablet PC or mobile phone, which is WIFI
capable and based on IOS or Android. This device is widely used in different fields including:
1. Textile industrial for textile inspection
2. Printing inspection
3. Industrial inspection: PCB, Precision machinery…
4. Educational purpose
5. Hair examination
6. Skin examination
7. Microbiological observation
8. Jewelry & coin (Collections) inspection
9. Visual Assistance
10. Others

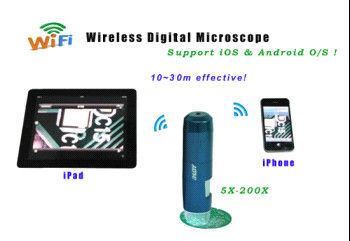

V200+ Wireless Digital Microscope makes up the limitation of distance and can be used in a range within 10 to 30 meters. It is a perfect match with IOS
mobile device (iPad, iPhone) and android mobile device (android tablet PC,android mobile phone). Please read below manual to get more detail about
the microscope and follow the operation instructions.
Image CMOS Sensor
Controller: High Speed DSP (M-jpeg)
Magnification Range 5X ~ 200X (Manually)
Take Images: Snap shot in build-in application program
Supplementary Light Source: Built-in 4~ 8 White-light LED and
adjustable illumination ensure the magnified images are clear and right
Focus Range: 0mm ~ 40mm, other range can be customized
WIFI Standard:IEEE 802.11 b/g/n standards compliant
Video Capture Resolution: 0.3M.
Still Image Capture Resolution: 640*480, can be magnified and
minified
Frame Rate: VGA 20 f/s Under 600 LUX Brightness
Fixed Foundation: Tailor-made for the microscope
Brightness Control: Manual adjustment
Power Supply: Rechargeable 1000mA self-protection lithium battery
Support O/S: WIFI capable, such as IOS and Android
Language: English (other language can be customized)
Application Software: HotViewer
Illumination Scope: 0 ~ 30000LUX
Product Dimension: 142 mm ( L ) X 37 mm ( R )
Product Net Weight: 100g
Available Color: Deep blue
Notes before use
1. Don’t dissemble the digital Microscope or change the interior parts,
it can cause damage.
2. Don’t clean the Microscope with alcohol organic solvents
3. Don’t touch the lens with your fingers.
4. Avoid outdoor use if possible.
5. Storage temperature, 0°C ~ 40°C, Humidity: 45%RH ~ 85RH%.
6. In case the product gets wet, leave PC connection immediately.
And do not dissemble or dry by hair dryer. Send to repair center if
the digit microscope was affected by liquid or other elements.
7. Measurement Data only for reference.
8. Wireless signal range within 30 m
Standard parts and accessories
1. Digital Microscope (1pc)
2. Charger (1pc) include power line
3. Special base (1pc)
4. CD ROM (application “HotViewer)” for android and installation user
manual
