Eyepiece |
Wide field high eyepiont eyepiece WF10X/20mm, WF15X/15mm,WF20X/10mm(can mount micrometer) |
|
Wide field high eyepiont eyepiece and diopter adjustment eyepiece WF10X/20mm,WF15X/15mm,WF20X/10mm(can mount micrometer) |
|
Viewing Head |

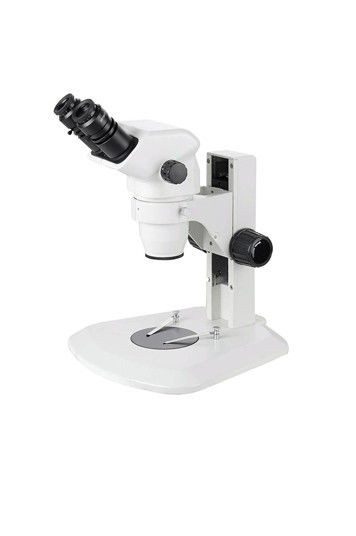

VSN7045:Binocular head, 45° inclined, 360°rotatable, zoom objective 0.7X-4.5X, working distance 100mm. inter-pupillary range 54~76mm, both two tube diopter adjustment(±5) |
|
VSN7045:Trinocular head, 45° inclined, 360°rotatable, zoom objective 0.7X-4.5X, working distance 100mm. inter-pupillary range 54~76mm, both two tube diopter adjustment(±5) |
|
VSN645: Binocular head, 45° inclined, 360°rotatable, zoom objective 0.7X-4.5X, working distance 100mm. inter-pupillary range 54~76mm, fixed eyepiece tube ( used for diopter adjustment eyepiece) |
|
VSN645:Trinocular head, 45° inclined, 360°rotatable, zoom objective 0.7X-4.5X, working distance 100mm. inter-pupillary range 54~76mm, fixed eyepiece tube ( used for diopter adjustment eyepiece) |
|
DVSZMN645: Digital head with LCD screen. 45° inclined, 360°rotatable, zoom objective 0.7X-4.5X, working distance 100mm. inter-pupillary range 54~76mm, fixed eyepiece tube ( used for diopter adjustment eyepiece) 8 inch LCD screen, resolution ratio 800*600,CCD 520 TVLINES |
|
Auxiliary Lens |
0.5X/165mm. 0.75X/105mm. 1.5X/45mm. 2X/30mm. |
|
Focus |
SZMA1 focus arm, two focusing knobs are with tension adjustable, adjust range 50mm. |
|
SZMNA1 focus arm, two focusing knobs are with tension adjustable, adjust range 50mm. |
|
SZA2 industry bound focus arm 1 (industry exclusive use) |
|
SZA3 industry bound focus arm 2 (industry exclusive use) |
|
Stand |
B4 pillar type sector plain stand |
|
SZMST2 pillar type transmission stand, top & bottom halogen illuminator 12V15W (brightness adjustment). |
|
SZMST3 pillar type transmission stand, top illuminator with 12V15W halogen bulb, brightness adjustment. bottom illuminator with 7W fluorescent light, fixed brightness |
|
VSTL1 single arm universal stand |
|
VSTL2 double arm universal stand |
|
Other light source |
Ring light/LED/Fiber |
|
Photo device |
Photo tube(with PK mount),4X photo eyepiece |
|
TV device |
0.35X/0.5X/1.0X C-mount adapter |
|
Others |
Precision measurement platform, dark field condenser, jewelry clip |
