Name: VB-7157
Brand: VANCO INDUSTRIES CO.,LTD
Availability: InStock

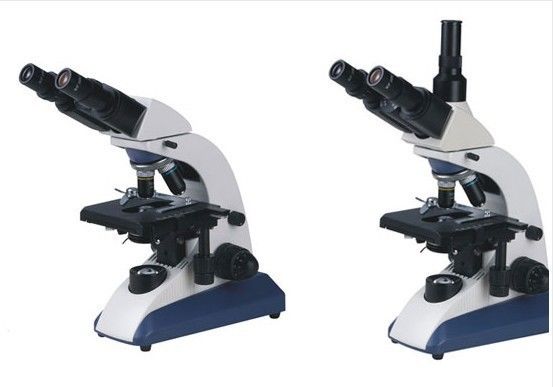

VB-7157

Place of Origin:	Made in China

Contact Now

Detailed Product Description

Specificaon		Modle
Specificaon		VB-7157A	VB-7157H	VB-7157T
Viewing Head	Monocular Inclined at 45°,360°Rotatble	●
	Compensation Free Binocular Head, Inclined at 30°(55mm-75mm)		●
	Compensation Free Trinoculaar Head, Inclined at 30°(55mm-75mm)			●
Eyepiece	WF10×/18mm	●	●	●
Objective	Achromatic 4×,10×,40×(s),100×(s)Oil	●	●	●
Nosepiece	Backward Quadruple Nosepiece	●	●	●
Stage	Double layer mechanical stage	●	●	●
	Stage Sixe:140mm×132mm
	Moving Range:70mm×30mm
Condenser	N.A.1.25 Abbe condenser with iris diaphragm and filter	●	●	●
Fcusing	Coaxial coarse & fine focusing adjustmenFine focusing scale value 0.002mm	●	●	●
Light Source	Halogen bulb 6V20W or 6V15W, AC 220V/110V	●	●	●
Light Source	Adjustable light intensity	●	●	●
Optional Accessory	Eyepiece:WF16×,WF20×,P16× Objective:20×,60(s) Semi-plan Objective:4×,10×,20×,40×(s),60×(s),100×(s)oil Plan Objective:4×,10×,20×,40×(s),60×(s),100×(s)oil Reflective Mirror, Demonstration(Teaching) HeadDark field and Phase contrast device 1.3Mega,2.0Mega,3.0Mega,5.0Mega pixels CMOS Digital camera eyepiece Photography attchment and CCD Adapter 0.5×,0.57×,0.75× Compensation Free Binocular & Trinocular Head (48mm-75mm) LED illumination
