VB-9005

Product Details:

Place of Origin:	Made in China

Payment & Shipping Terms:

Minimum Order Quantity:	NON
Price:	NON
Packaging Details:	STANDARD EXPORTING PACKING
Delivery Time:	ONE MONTH
Payment Terms:	T/T
Supply Ability:	1000 per month

Contact Now

Detailed Product Description

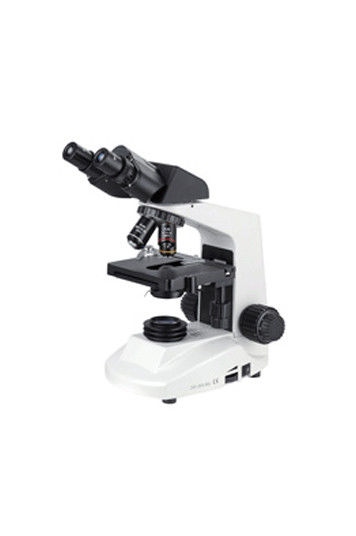

VB-9005 series biological microscope

■ Eyepiec and objective have each achromatic aberration system.
■ Good quality image,higer resolution ratio,wide clear range
■ Ergonomic design with low position adjustment
■ Provide high quality optical system and durable and reliable operation
mechanism; cost-effective
■ This microscope can be used in teaching and laboratory in colleges and
university,as well as R＆D institution.

Specifications

Eyepiece	High eyepoint wide field eyepiece WF10X/18,(option pointer and micrometer)
Eyepiece	wide field eyepiece WF15X/13 ,WF 20X/10
Objective	Achromatic objective4X,10X,40X,100X
Objective	Plan objective 4X,10X,40X,100X
Observation tube	Monocular head ,45°inclined and rotating
	Binocular head,45°inclined and rotating
	Trinocular head,45°inclined and rotating
	Binocular head,30°inclined and rotating
	Trinocular head,30°inclined and rotating
Focusing adjustment	Coaxial coarse and fine focusing adjustment,with limited and tension ajustment.coarse adjustment travel range:22mm,fine adjustment precision:0.002mm
Nosepiece	Triple nosepiece
Nosepiece	Quadruple nosepiece
Stage	Coaxial mechanical stage in 140X130mm size and 50X75mm travel range
Accessory for stage	Press style clips
Accessory for stage	attachable mechanical stage in 60mmX30mm travel range
Condenser	N.A.0.65 single lens condenser
Condenser	N.A.=1.25 ABBE condenser and iris diaphragm,with filter holder
Illuminator	Mail supply 90-240V adaptable,6V20W halogen lamp with intensity control
	Externally transformer, 12V15W halogen lamp with intensity control
	LED lamp,with intensity control
Filter	Blue /yellow /green
