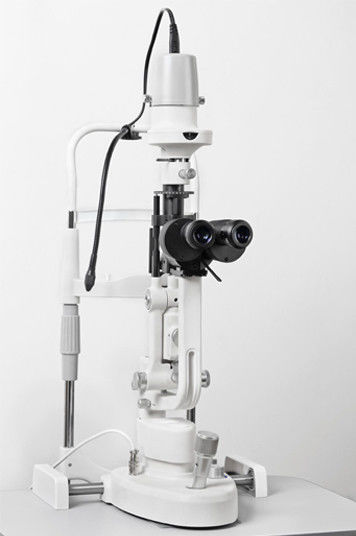

V350C
2 step slit lamp |
V350S
3 step slit lamp |
V350
5 step slit lamp |
|
Microscope specifications |
|
|
|
|
Microscope type: |
Converging sterescope |
Galilean system |
Galilean system |
|
Magnification changer: |
2 step by objective lens rotation |
Revolving drum(3 steps) |
Revolving drum(5 steps) |
|
Total magnification: |
10X,16X |
10X,16X,25X |
6X,10X,16X,25X,40X |
|
Ocular magnification: |
10X |
12.5 X |
12.5 X |
|
Inter pupillary distance: |
52mm～78mm |
52mm～78mm |
52mm～78mm |
|
Ranger of adjusting eyepieces: |
+5 to -8 diopters |
+6 to -6 diopters |
+6 to -6 diopters |
|
Object image field Ø in mm: |
18(10X),14.5(16X) |
22(10X),13.5(16X),8.5(25X) |
34.7(6X),22(10X),13.5(16X),8.5(25X),5.5(40X) |
|
Slit illumination |
|
|
|
|
Slit image width: |
0～14mm continuous (slit becomes a circle at 14mm) |
0～14mm continuous (slit becomes a circle at 14mm) |
0～14mm continuous (slit becomes a circle at 14mm) |
|
Slit image length: |
1～14mm continuous |
1～14mm continuous |
1～14mm continuous |
|
Light source: |
6v/20w halogen incandescent light bulb |
6v/20w halogen incandescent light bulb |
6v/20w halogen incandescent light bulb |
|
Slit image radial range: |
0～180° |
0～180° |
0～180° |
|
Filters: |
Heat aborption,grey,redfree(green),cobalt blue |
Heat aborption,grey,redfree(green),cobalt blue |
Heat aborption,grey,redfree(green),cobalt blue |
|
Illumination fields Ø in mm: |
0.5/3.5/8/14 |
0.2/1/2/3/5/10/14/1~14 continuous |
0.2/1/2/3/5/10/14/1~14 continuous |
|
Illumination intensity: |
≥50KLX |
≥50KLX |
≥50KLX |
|
Instument base |
|
|
|
|
Operation: |
Single handed 3-dimensional operation of the joystick |
Single handed 3-dimensional operation of the joystick |
Single handed 3-dimensional operation of the joystick |
|
Range of adjustment: |
90mm(longitudinal) |
90mm(longitudinal) |
90mm(longitudinal) |
|
|
100mm(lateral) |
100mm(lateral) |
100mm(lateral) |
|
|
30mm(vertical) |
30mm(vertical) |
30mm(vertical) |
|
|
15(fine) |
15(fine) |
15(fine) |
|
Chin-rest |
|
|
|
|
Fixation: |
Red led |
Red led |
Red led |
|
Vertical adjustment: |
80mm |
80mm |
80mm |
|
Power Supply |
|
|
|
|
Input voltage: |
220v/110v ±10% |
220v/110v ±10% |
220v/110v ±10% |
|
Input frequency: |
50Hz/60Hz |
50Hz/60Hz |
50Hz/60Hz |
|
Output power: |
30VA(max) |
30VA(max) |
30VA(max) |
|
Output voltage: |
Light source 6V continuous,fixation 3V |
Light source 6V continuous,fixation 3V |
Light source 6V continuous,fixation 3V |
|
Packaging |
|
|
|
|
Carton: |
740mm X 470mm X 560mm |
740mm X 470mm X 560mm |
740mm X 470mm X 560mm |
|
Gross weight: |
22Kg |
24Kg |
24Kg |
|
Net weight: |
19Kg |
21Kg |
21Kg |
