V280

V280

V280

Product Details:

Place of Origin: Made in China
Brand Name: VANCO
Certification: CE
Model Number: V280

Payment & Shipping Terms:

Minimum Order Quantity: NON
Price: NON
Packaging Details: STANDARD EXPORTING PACKING
Delivery Time: ONE MONTH
Payment Terms: T/T
Supply Ability: 1000 per month
Contact Now
Detailed Product Description

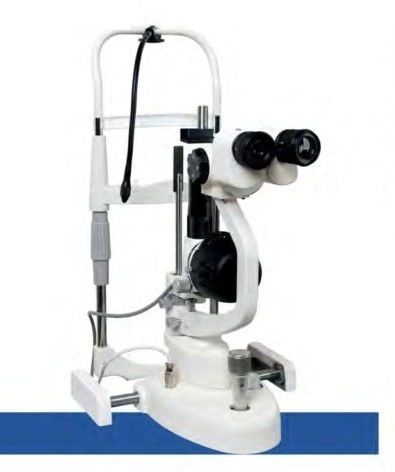

 		 V280
     5 step slit lamp
Microscope specifications
Microscope type: Galilean system
Magnification changer: Revolving drum(5 steps)
Total magnification: 6X,10X,16X,25X,40X
Ocular magnification: 12.5 X
Inter pupillary distance: 52mm～78mm
Ranger of adjusting eyepieces: +6 to -6 diopters
Object image field Ø in mm: 34.7(6X),22(10X),13.5(16X),8.5(25X),5.5(40X)
Slit illumination
Slit image width: 0～14mm continuous (slit becomes a circle at 14mm)
Slit image length: 1～14mm continuous
Light source: 6v/20w halogen incandescent light bulb
Slit image radial range: 0～180°
Filters: Heat aborption, redfree(green), cobalt blue
Illumination fields Ø in mm: 0.5/3.5/8/14/1~14 continuous
Illumination intensity: ≥50KLX
Instument base
Operation: Single handed 3-dimensional operation of the joystick
Range of adjustment: 90mm(longitudinal)
  100mm(lateral)
  30mm(vertical)
  15(fine)
Chin-rest
Fixation: Red led
Vertical adjustment: 80mm
Power Supply
Input voltage: 220v/110v ±10%
Input frequency: 50Hz/60Hz
Output power: 30VA(max)
Output voltage: Light source 6V continuous,fixation 3V
Packaging
Carton: 740mm X 470mm X 560mm
Gross weight: 22Kg
Net weight: 19Kg
