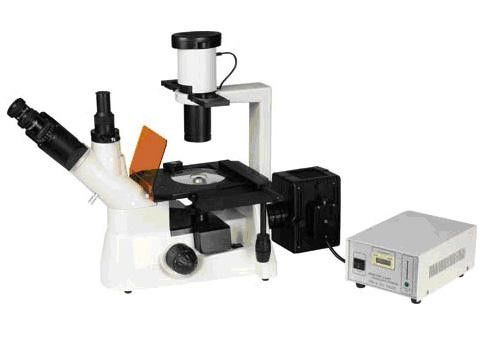

VF-7403Y inverted fluorescent microscope is composed of inverted microscope and Epi-fluorescent microscope. The inverted microscope has the feature to observe the specimen in Culture flask and Petri dish. Epi-fluorescent device applies to the fluorescent microscopy. It is equipped with long working distance plan achromatic objectives, wide field eyepiece, binocular observation head, phase contrast kit and phase contrast objectives. The transparent alive objects can be observed without dyeing. Epi-fluorescent microscope adopts to Epi-illumination excitation to make fluorescent image clear. Long working distance condenser can contain higher culture dish and specimen. This equipment is specially suitable for micro research of living cells ＆ university, medical treatment, epidemic prevention department and farming ＆ stock raising,etc.
| Specification | |
| Viewing Head | Compensation Free Trinocular Head, Inclined 45°(50mm-75mm) |
| Eyepiece | WF10×/22mm |
| Objective |
Long working distance plan achromatic objectives: 4×,10×(phase contrast), 20×(phase contrast),40×(s) |
| Stage | Double layer mechanical stage |
| Stage Size: 242mm×172mm Central stage: Φ110mm | |
| Moving Range: 75mm×40mm | |
| Filter | N.A.0.3 Abbe Condenser with iris diaphragm, Working Distance:75mm |
| Focusing |
Coaxial coarse and fine focusing system With tension adjustment Fine focusing scale value 0.002mm |
| Light Source | Transmission Illumination: Halogen Bulb 12V/30W, Adjustable Brightness |
|
Epi-Fluorescent lllumination:220V(110V) Ultra-high pressure Mercury Lamp100W/DC. Digital display mercury lamp constant power |
|
| Fluorescence attachment | B,G Wave band |
| Optional Accessory | 1.3Mega,2.0 Mega,3.0 Mega,5.0 Mega,pixels CMOS Digital camera eyepie |
| Objective:40×phase contrast | |
| U,V Wave band | |
| Photography attachment and CCD Adapter0.5×,0.57×,0.75× |
