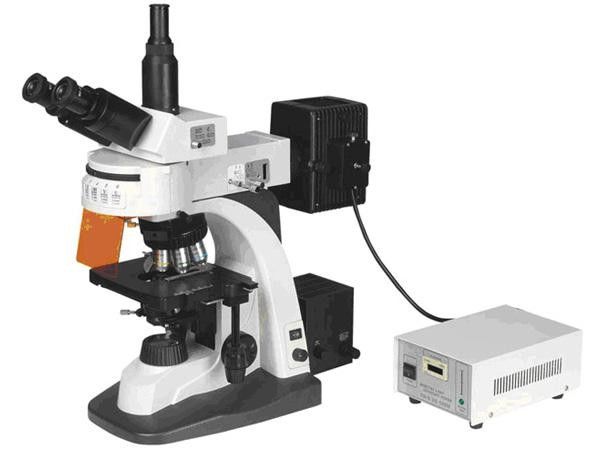

VF-7606 Fluorescence Microscope is made up of the Biological microscope and Epi-fluorescence device. Epi-fluorescence widely used in biology, medicine, immunology, oncology, genetics, materials science and other fields. Conventional configuration has 5 wave bands, and B,G,BV,V,U can be switched, and meanwhile, the conventional transmission observation can be proceeded. High-quality optical system and fluorescent attachment make you observed the satisfactory fluorescent effect. It is your best choice because of humanized configuration design, convenient operation system and novel appearance.
| Specification | |
| Viewing Head | Compensation Free Binocular Head Inclined at 30°(50mm-75mm) |
| Eyepiece | WF10×/22mm |
| Objective |
Infinite Apochromatic Fluorescent Objectives: 4×/N.A.O.15,10×/N.A.O.35,20×/N.A.0.6,40 × (S) /N.A.O.75 |
| Nosepiece | Sextuple Nosepiece |
| Stage | Double layer mechanical stage |
| Stage Size: 180mm×160mm | |
| Moving Range: 80mm×50mm | |
| Condenser | N.A.1.25 Abbe condenser with iris diaphragm and filters |
| Focusing |
Coaxial coarse＆fine focusing adjustment with rack and pinion mechanism.Fine focusing scale value 0.002mm |
| Light Source | Transmission Illumination: Halogen Bulb 12V/30W, Brightness Adjustable |
|
Epi-Fluorescent Illumination: 220V(110V) .Ultra-high pressure Mercury Lamp100W/DC.Digital display mercury lamp constant power |
|
| Fluorescent Box | G,B,BV,V,U Wave Band |
| Optional Accessory | Eyepiece: WF16×/17mm,WF20×/12.5mm |
| 1.3Mega,2.0 Mega,3.0 Mega,5.0 Mega pixels CMOS Digital camera eyepiece | |
| Infinite Plan Objectives: 4×,10×,20×,40×(s),60×(s),100×(s)oil | |
| Infinite fluorescent Objectives:100×(dry)/N.A.0.9 | |
| Y Wave band fluorescent box | |
| Light Source: Halogen Bulb 12V/50W,12V/100W | |
|
Photography attachment and CCD Adapter0.5×,0.57×,0.75× |
