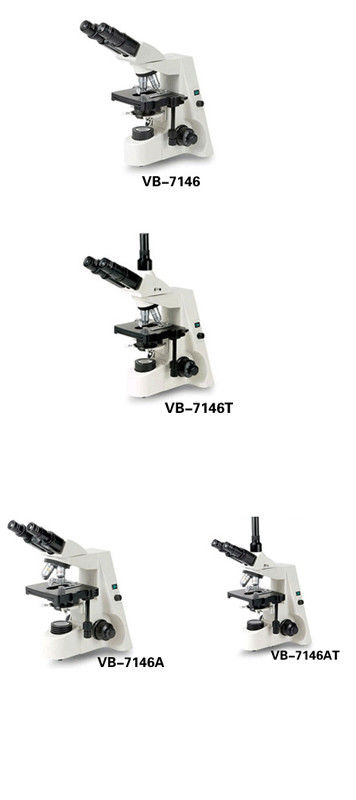

VB-7146/T/A/AT

Product Details:

Place of Origin:	Made in China

Payment & Shipping Terms:

Minimum Order Quantity:	NON
Price:	NON
Packaging Details:	STANDARD EXPORTING PACKING
Delivery Time:	ONE MONTH
Payment Terms:	T/T
Supply Ability:	1000 per month

Contact Now

Detailed Product Description

High efficiency, flexibility and stability are the characters of this series microscope. It is specially developed for various applied scopes. It is widely used, from daily work to scientific research, in Laboratory, Hospitals and Colleges. Because of higher capability with lower price and humanized configuration design, It also becomes the first choice of individual, Schools, and Scientific research organization.
Features:
1. Wide-field Eyepiece, high light illumination and superior optical
parts make the image clear, sharp and bright.
2. Backward nosepiece with superior objectives makes the best viewing
effect and more space for the operator.
3. Wide mechanical stage with 2-Microslide specimen clamp provides more
convenience for the observer.
4. High precision focusing adjustment system and humanized configuration design provide operator more comfortable.
5. Frontal undrawing type Light collector framework, makes the user
change the bulb more quickly and easily.

Specification		Model
Specification		VB-7146	VB-7146T	VB-7146A	VB-7146AT
Viewing head	Compensation Free Binocular Head. Inclined at 30 °	●		●
Viewing head	Compensation Free Trinocular Head. Inclined at 30 °		●		●
Interpupillary Distance	55mm-75mm	●	●	●	●
Eyepiece	WF10 ×/ 18mm	●	●
Eyepiece	WF10 ×/ 22mm			●	●
Objective	Achromatic objective: 4 × ,10 × ,40 ×(S),100 × (S)Oil	●	●
Objective	Infinity objective: 4 × 10 × 40 × (S) 100 × (S)Oil			●	●
Stage	Double layers mechanical stage	●	●	●	●
	Stage size: 180mm × 150mm
	Moving range: 75mm × 50mm
Condenser	N.A1.25 Abbe condenser with iris diaphragm & filter	●	●	●	●
Condenser	Swing type N.A1.25 Abbe condenser with iris diaphragm & filter	○	○	○	○
Focusing	Coaxial coarse & fine focusing adjustment with rack and pinion mechanism Fine focusing scale Value 0.002mm	●	●	●	●
Collector	High brightness Kohler illumination	●	●	●	●
Light source	Halogen tungsten bulb 12V/20W.AC 85V-230V	●	●	●	●
Light source	Adjustable brightness	●	●	●	●
Optional Accessory	Eyepiece:WF16×,WF20×,P16× and 1.3 or 3.0 Mega pixels CMOS electronic eyepieces Plan-Objective:2×,4×,10×,20×,40×(s),60×(s),100×(s) Infinity-plan Objective:2×,4×,10×,20×,40×(s),60×(s),100×(s) Phase Contrast Attachment Simple Polarization Set Photo and CCD attchment

Mark” ● ”standard outfit. Mark:” ○ ”optional parts.
