VB-7158

Product Details:

Place of Origin:	Made in China

Payment & Shipping Terms:

Minimum Order Quantity:	NON
Price:	NON
Packaging Details:	STANDARD EXPORTING PACKING
Delivery Time:	ONE MONTH
Payment Terms:	T/T
Supply Ability:	1000 per month

Contact Now

Detailed Product Description

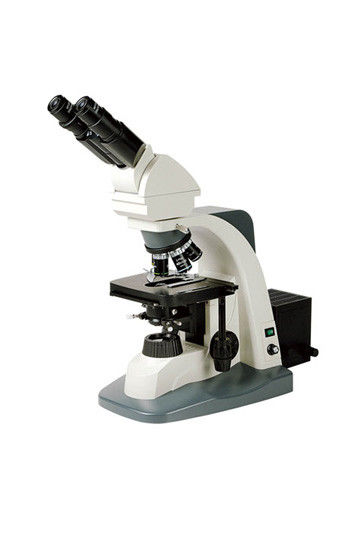

VB-7158microscope becomes a new landmark .It is diversification brings you enter into an epoch not only the performance but also the application. The module design can meet your needs on all normal experiment and scientific research .Its humanized configuration design,reasonable control device and layout of every operation knob can keep your eyes, neck, shoulders, waist, arms and wrist against tiredness. You can be released from heavy word due to the comfortable operation.

Specification		Standard outfit	Optional parts
Viewing head	Compensation Free Binocular Head,Inclined adjustment 0 ° -40 °	●
Viewing head	Compensation Free Trinocular Head ,Inclined adjustment 0 ° -40 °		○
Interpupillary Distance	55mm -75mm	●
Eyepiece	WF10X/ 22mm	●
Eyepiece	WF16X,WF20X,WF25X,P16X		○
Nosepiece	Quintuple nosepiece	●
Nosepiece	Sextuple nosepiece		○
Objective	Infinity plan objectives:4X,10X,40X(S),100X(S) Oil	●
Objective	Infinity plan objectives:20X(S),60X(S)		○
Stage	Double layers mechanical stage	●
	Stage size:180mmX 160mm
	Moving range :75mmX 50mm
Condenser	Swing type N. A.1.25 Abbe condenser with iris diaphragm&filter	●
Focusing	Coaxial coarse&fine focusing adjustment with rack and pinion mechanism Fine focusing scale Value 0.002mm	●
Collector	Kohler illumination	●
Light source	Halogen bulb12V/30W 12V/50W or 12V/100W.AC85-230V	●
Light source	Adjustable brightness	●
Optional Accessory	Fluorescent attachment		○
	Phase contrast attachment		○
	Dry&Immersion dark field condenser		○
	Simple polarization attachment		○
	3.0or1.3Mega pixel, CMOS electronic eyepiece		○

Mark” ● ”standard outfit. Mark:” ○ ”optional parts.
