VB-9002

Product Details:

Place of Origin:	Made in China

Payment & Shipping Terms:

Minimum Order Quantity:	NON
Price:	NON
Packaging Details:	STANDARD EXPORTING PACKING
Delivery Time:	ONE MONTH
Payment Terms:	T/T
Supply Ability:	1000 per month

Contact Now

Detailed Product Description

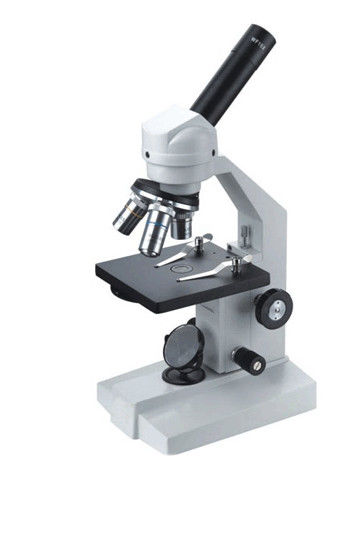

VB-9002 series biological microscope

■ 195 achromatic objective,mechanical tube length 160mm
■ Widefiedl WF10x/18mm eyepiece, pointer and reticle options
■ Monocular or binocular head,inclined at 45 degrees and rotating
■ Separate or coaxial coarse and fine focusing adjustment
■ Triple or quadruple nosepiece
■ 110mmx120mm plan stage and coaxial mechanical stage options
■ N.A.0.65 fixed condenser and disc diaphragm
N.A1.25 focusable Abbe condenser and iris diaphragm
■ φ42mm plano-concave mirror；230V20w tungsten lamp；3pcs/4pcs LED la
mp

Specifications

Objective	Achromatic objectives 4X,10X,40X(s),100X(s)
Eyepiece	Widefield WF10X/18mm, pointer and reticle options
	Widefield WF16X/14mm
	Widefield WF20X/10mm
Observation tubes	Monocular head, inclined 45 degrees and rotating
	Dual viewing head, inclined 30 degrees and rotating
	Binocular head,inclined 45 degrees and rotaing with diopter control
	Monocular digital head(2 million pixels), inclined 45 degrees and rotaing
Nosepiece	Triple nosepiece
Nosepiece	Quadruple nosepiece
Focusing adjustment	Separate coarse and fine focusing adjustment
Focusing adjustment	Coaxial coarse and fine focusing adjustment
Illumination options	φ42mm plano-concave mirror and fork
	Main supply 115v or 230v ,tungsten 20w lamp
	LED illumination
Stage	110 x 120mm metal plan stage
Stage	115mm x 125mm coaxial mechanical stage
Condenser	inclined 45 degrees and rotaing
Condenser	N.A1.25 focusable Abbe condenser and iris diaphragm
Other options	Mechanical stage,simple polarization
