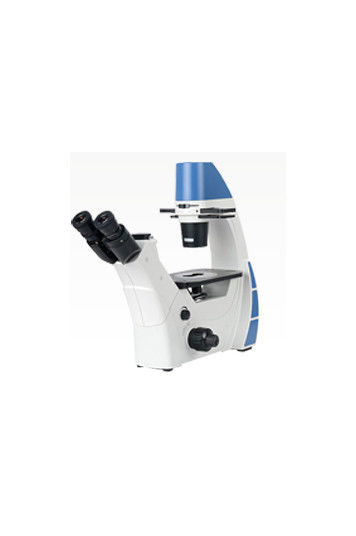

Model |
VB-9040 |
|
Optical System |
Infinity color corrected optical system |
|
Eyepiece |
High eye-point plan eyepiece PL10X/22, field of view: 22mm. |
|
High eye-point plan eyepiece PL10X/22, field of view: 22mm, with reticle. |
|
High eye-point plan eyepiece PL15X/16, field of view: 16mm |
|
Objective |
OLIPP2N long working distance plan positive phase contrast objective 4X,10X,20X,40X |
|
Nosepiece |
Revolving quintuple nosepiece(option: quadruple nosepiece) |
|
Viewing Head |
45°inclined gemel binocular head, interpupillary distance range: 54-75mm. |
|
45°inclined gemel trinocular head, interpupillary distance range: 54-75mm. fixed splitting ratio for binocular: trinocular= 80:20. |
|
Stage |
Fixed stage size: 250x160mm, slider clips, extension plate and coaxial moveable stage can be assembled. |
|
Focusing adjustment |
Coaxial focus system with up-limited and tension adjustment. |
|
Coarse range: 9mm, fine range: 0.2mm, fine precision: 0.002mm. |
|
Attachable moveable stage |
Coaxial focus system, range: 120x78mm, various of holders can be assembled. |
|
Holder |
Slides holder(φ54mm and 26.5x76.5mm) |
|
Teraseki holder(φ65mm and 56x81.5mm) |
|
φ35mm Petri dish holder |
|
Condenser |
N.A.0.3 Koehler illumination condenser, with phase-adjustable slide plate, long working distance 72mm. The whole set can be rotated down. |
|
Filter |
φ45mm green interference filter, color temperature change filter, infrared eliminate filter |
|
Illumination |
5W warm color LED,12V3.3A external transformer, intensity adjustable. |
