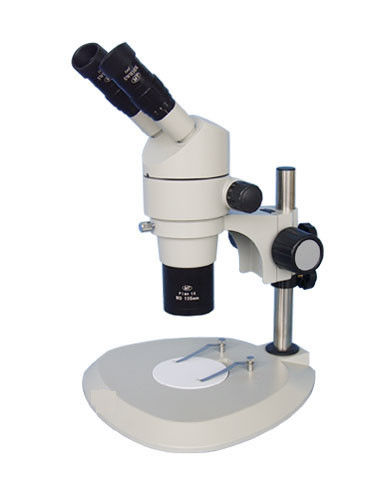

VS0850 Series Stereo Microscope

Product Details:

Place of Origin:	Made in China

Payment & Shipping Terms:

Minimum Order Quantity:	NON
Price:	NON
Packaging Details:	STANDARD EXPORTING PACKING
Delivery Time:	ONE MONTH
Payment Terms:	T/T
Supply Ability:	1000 per month

Contact Now

Detailed Product Description

VS0850 series parallel optics zoom stereo microscopes have two types,
VS0850(binocular) and VS0850T(trinocular).
It is characterized by parallel optical system.
Magnification range of zoom body is 0.8X~5X,
magnification from high to low non-flash in focusing course,
large depth of field, long working distance,
has many kinds of attachments.
It can be satisfied the demands of checking-up and analysis
in modern biology,medicine, environment, farming, police, micro-electronics,
semiconductors etc. fields.

MZPS0850 Standard specification
Accessories optional stand and base stage
packing size

VS0850 series parallel optics zoom stereo microscopes
Main technology Specifications:
●    Parallel optics system, 0.8X~5X zoom body, standard outfits. 1X plane none aberrance 10X eyepiece, working distance 91mm.
●    Standard total magnification: 8X~50X, the biggest magnification: 225X.
●    With plan, high eye point and wide field eyepieces(Φ22mm).
●    Binocular eyetubes inclined 45°.
●    The range of adjusting the diopter is ±6
●    Interpupillary distance adjustment range 50mm~76mm
●    The range of adjusting the focus is 50mm(the square  post is 100mm), the diameter of the center working stage is Φ95mm.
●    The measurement to match between the support and the main body is Φ76mm
●    The distance between from the post center to the main body center is 140mm
●    The size of the round post is Φ25mm
●    There are many magnification objectives, eyepieces, auxiliary illuminators etc. attachments and kinds of stands and universal stands to be selected.

Standard specification:

	VS0850	VS0850T
Main body VZPS0850	●
Main body VZPS0850T		●
Eyepieces WF10X/22	●●	●●
Eye shields	●●	●●
1X plane objective PS-WP1.0	●	●
Stand SD1	●	●

VS0850 series connect with different attachments and stands:


VS0850T(PS-T1)+PT01+camera	VZPS0850+SF1+U1	VZPS0850+SD4P+S7650

Technical data:

Eyepiece	Objective	0.5X	0.7X	1X	1.5X(auxiliary objective)
10X	Total magnification	4X~25X	5.6X~35X	8X~50X	12X~75X
10X	Diameter of visual field(mm)	Φ55~Φ8.8	Φ39.3~Φ6.3	Φ27.5~Φ4.4	Φ18.33~Φ2.93
15X	Total magnification	6X~37.5X	8.4X~52.5X	12X~75X	18X~112.5X
15X	Diameter of visual field(mm)	Φ42.5~Φ6.8	Φ30.36~Φ4.86	Φ21.25~Φ3.4	Φ14.17~Φ2.27
20X	Total magnification	8X~50X	11.2X~70X	16X~100X	24X~150X
20X	Diameter of visual field(mm)	Φ35~Φ5.6	Φ25~Φ4	Φ17.5~Φ2.8	Φ11.67~Φ1.87
30X	Total magnification	12X~75X	16.8X~105X	24X~150X	36X~225X
30X	Diameter of visual field(mm)	Φ22.5~Φ3.6	Φ16.1~Φ2.57	Φ11.25~Φ1.8	Φ7.5~Φ1.2
Working distance(mm)		186	135	91	40

Note: 1.Please use lengthen round post when using 0.5X objective.
2.Please use 1X plane objective & 1.5X auxiliary objective together when using 1.5X.
Dimensional Drawing:
VS0850 Series Stereo Microscope
