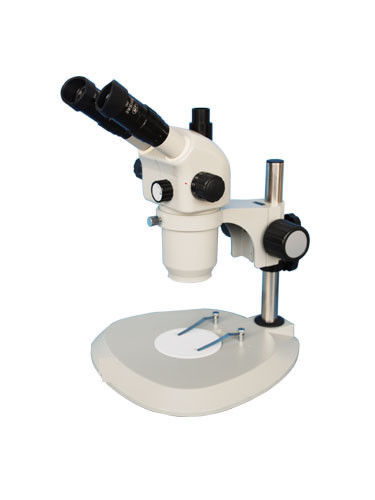

VS0655 VS0870

Product Details:

Place of Origin:	Made in China

Payment & Shipping Terms:

Minimum Order Quantity:	NON
Price:	NON
Packaging Details:	STANDARD EXPORTING PACKING
Delivery Time:	ONE MONTH
Payment Terms:	T/T
Supply Ability:	1000 per month

Contact Now

Detailed Product Description

VS0655,VS0870 series zoom stereo microscopes have biggish zoom ratio, magnification
from low to high non-flash in focusing course, large depth of field, long working distance.
It has many kinds of attachments. It can match with many stands and universal stands.
Trinocular main body can connect CCD (COMS) camera, digital camera or film camera.
Many kinds of eyepieces, divisional eyepieces and auxiliary objectives can be selected.
It can match LED ring illuminator, ring fluorescent lamp, fiber etc. It can be satisfied the
demands of checking up, measure and analysis in modern biology, medicine,
environment, agriculture and forestry, chemistry industry, police, micro-electronics,
semiconductors etc. fields. It is widely used in schools, biology engineering and
science research, industry assemble, test and measure and controlling the quality.

VS0655,VS0870 series zoom stereo microscopes
Main technology Specifications:
● Total magnification(standard outfits): VS0655 series: 6X~55X, VS0870 series: 8X~70X
Extend total magnification:VS0655 series: 330X, VS0870 series: 420X
● Zoom objective magnification: VS0655 series: 0.6X~5.5X, zoom ratio is 9.2:1. The working distance is 108mm.
VS0870 series: 0.8X~7.0X, zoom ratio is 8.8:1. The working distance is 108mm.
● With wide field and high eye point eyepiece SWH10X(Φ23mm)
● Trinocular/Binocular drawtubes horizontal inclined 35°and main body can be rotated 360°
● The range of adjusting the diopter is ±6
● Interpupillary distance adjustment range 52mm~76mm (Left and right move at the same time)
● The range of adjusting the focus is 50mm(the square post is 100mm).
The diameter of the center working stage is Φ95mm
● The measurement to match between the support and the main body is Φ76mm
● The distance between from the post center to the main body center is 140mm
● The size of the round post is Φ25mm
● Illuminators : The down illuminator is the transmitted illumination of the fluorescent lamp(5W), The up illuminator is the reflected illumination of the halogen lamp(6V,10W).

Standard specification:

	VS0655	VS0655T	VS0870	VS0870T
Main body VZS0655	●
Main body VZS0655T		●
Main body VZS0870			●
Main body VZS0870T				●
Eyepieces SWH10X	●●	●●	●●	●●
Eye shields	●●	●●	●●	●●
Stand SD1	●	●	●	●

VS0655,VS0870 series connect with different attachments and stands:


VS0655T/VS0870T+ML01	VZS0655/VZS0870+SD2J	VS0655T/VS0870T +C1.0-S+CCD

Main optical data:
VS0655 VS0870

Note: Please use lengthen round post when using 0.37X or 0.5X objective. When using 0.37X objective, the round post lengthen to 350 mm at least.
Dimensional Drawing:

VS0655/VS0870 main body

VS0655T/VS0870T main body

VS0655/VS0870(+SD1)

VS0655T/VS0870T(+SD1)

Optional stand and base stage:


Universal stands more…	Stands more…	Holders more…
