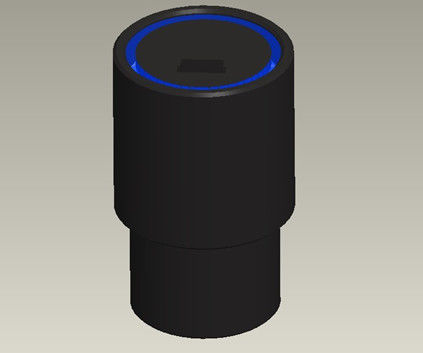

SX-EP300

Place of Origin:	Made in China

Contact Now

Detailed Product Description

Model	SX-EP300A	SX-EP300B
Sensor Specification	Aptina MT9P001
Scan Mode	Progressive
Active pixels	2048 x 1536
Optical format	1/2.7”
Pixel size	2.2µm x 2.2µm
Active imager size	5.70mm(H) x 4.28mm(V)
Dynamic Range	66.5dB
A/D Converter	8-bit
SNR	40.5dB
Spectral	380-650nm (with IR-filter)
Frame Rate/Resolution	4fps @2048 x 1536, 5fps @1600 x 1200,7.5fps @1280x1024, 30fps
Binning	N/A
Shutter	ROLLING SHUTTER
White Balance	Auto
Color Rendering Technique	N/A
Peak Quantum Efficiency	N/A
Readout noise	N/A
Extinction Ratio	N/A
Smear	N/A
Software Interface	TWAIN,DirectShow,
Capture Mode	Image and Video
Cooling System	Natural
Operating Temperature	-10~ 50℃
Storage Temperature	-20~ 60℃
Operating Humidity	30~80%RH
Storage Humidity	10~60%RH
Microscope Adapter	N/A	Low-Magnification(0.45X)C-Mount Adapter
Power Supply	USB +5V
Operating System	Support Microsoft Windows XP / Vista / 7 / 8 (32 & 64 ) OS X (Mac OS X) Linux
System Requirement	CPU:Intel Core 2 2.8GHz or above
	Memory:2GBor above
	USB PORT: USB2.0
	Display:17” or Larger
	CD-ROM
