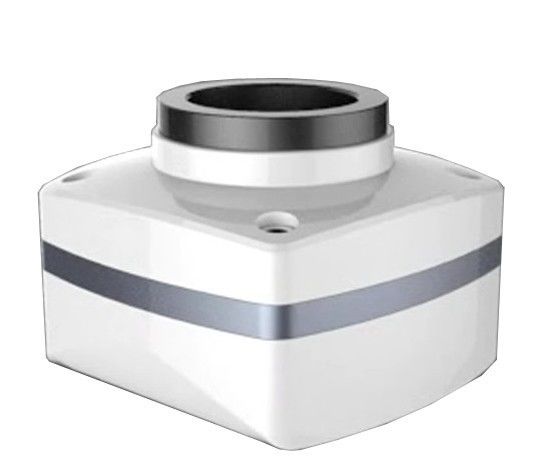

SX-UH500

Place of Origin:	Made in China

Contact Now

Detailed Product Description

Model	SX-UH500A	SX-UH500B
SENSOR SPECIFICATION	MT9P006
OPTICAL FORMAT	1/2.5" CMOS Color
Active pixels	2592H×1944V(5M)
Frame Rate/Resolution	5fps@2592×1944	7fps@2592×1944
	Arbitrary Resolution ROI
Pixel size	2.2μm×2.2μm
Scan Mode	Progressive
Shutter	(ROLLING SHUTTER)
Exposure	0.120-3000ms
Image Format	Raw8/Raw12(Option)
Sensitivity	1.76V/Lux-sec(550nm)
Spectral	380nm-650nm(with IR-filter)
SNR	38.5dB
Dynamic Range	67.7dB
TVL	1100-1200
Exposure Control	Automatic/Manually/ROI Exposure
White Balance	Manually White Balance/Once White Balance/ROI White Balance
File Format	RAW,BMP,JPG,PNG
Programmable control	Frame Speed,Resolution,Capture Mode,Brightness,Exposure,Gain,50Hz/60Hz,GAMMA,Contrast,RGB Gain,Saturation,BLC,Sharpness
Operating System	Windows / Linux / MAC OS X / Android(Customize)
Software Interface	TWAIN,DirectShow
Firmware	Update Over USB Cable
Data interface	USB2.0 480MB/S

Power Consumption	Work: 1W,Standby: 0.3W
Power Supply	DC 5V OVER PC USB PORT
Operating Temperature	0~50℃
Storage Temperature	-20℃~60℃
Operating Humidity	10%-90%RH(Non-condensing)
Storage Humidity	10%-60%RH
Optical port	C/CSMount
Dimension	××**mm(Adapter ring and Fixed block excluded)
Weight	~***g
