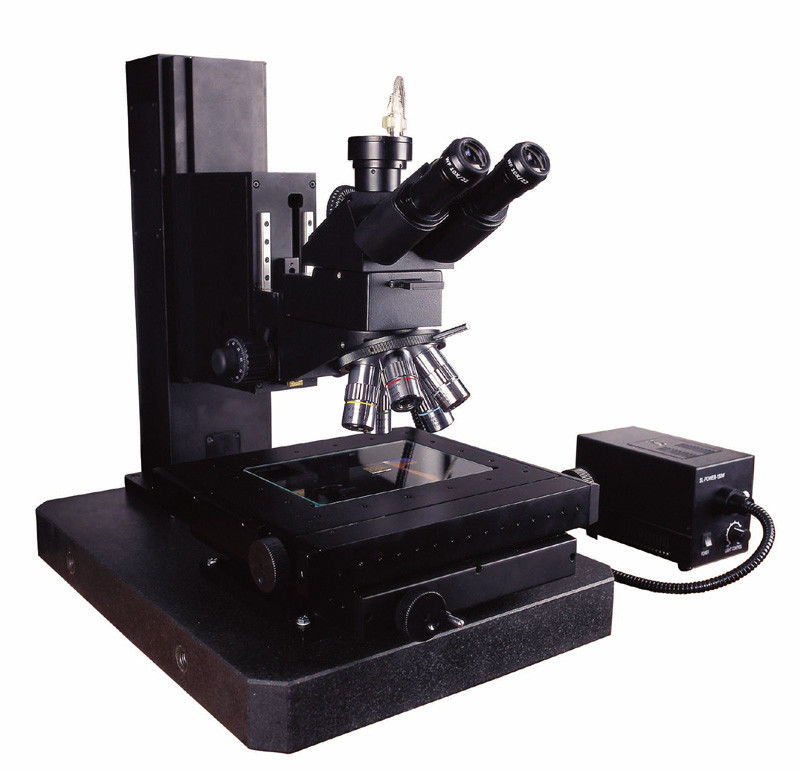

Measurement microscope is widely used for crystal, integrated circuit(IC) examination and exact measurement.It is supplied with Cold light fiber reflected illuminator , imaging and viewing system, polarized imaging system.
Specifications
Optical Imaging System
------Infinitive Optical systam, Tube Lens Focal Length 200mm
------ Compensation Free Trinocular Tube, Inclined at 30°, Interpupillary Distance 55-75mm
------High Point and Wide Field Eyepiece WF10/22
------Long Working Distance, Plan Apo Objectives 2X/0.055, 5X/0.14, 10X/0.28, 20X/0.29, 50X/0.42
------ Quintuple Nosepiece
Focus Adjustment System
-----Coaxial Coarse & Fin Focus Adjustment System, Fine Division 0.002mm
Stage
------ 6″x8″Double Layers Mechanical Stage, Move Range 153x204mm.
Three-dimensional Measurement System
-------Resolution: 1μm
-------Measurement Exactitude: ±(2+L/200)μm
------Repeatedly Orientation Exactitude: 2μm
Illumination System
-------Cold Light Fiber Reflected Illnminator: 150W
--------Complete Geometric Measurement(Point,Line,Circle, Arc etc.)
--------Enactment, Adjustment of Reference Frame
--------Diversity of Display: Conversion of Language, Measure and Angle
