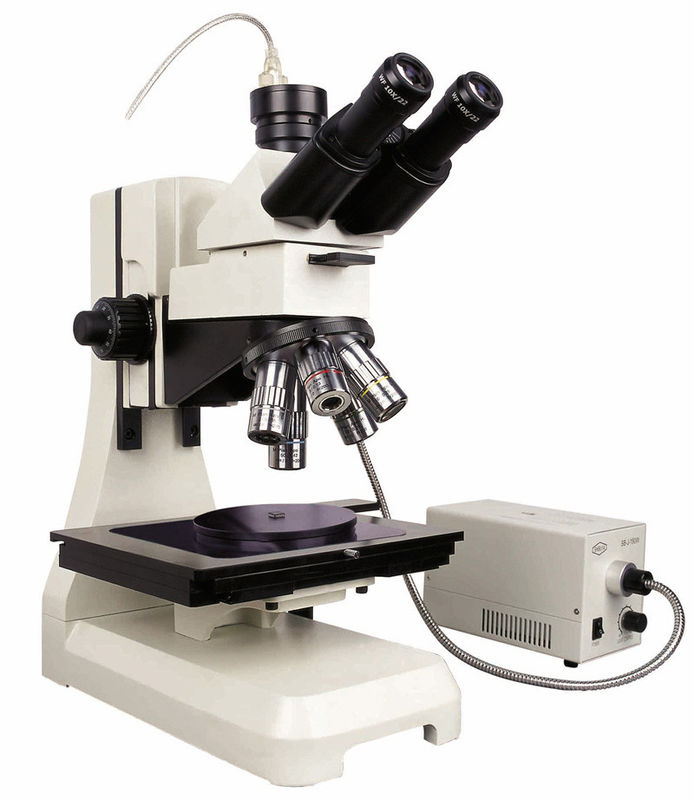

VGX-6 Industrial microscope is widely used for crystal, integrated
circuit (IC) examination and research. It is supplied with reflected illumination, imaging and viewing system,
polarized imaging system.
Specifications
◇ Infinitive Optical System, Tube Lens Focal Length 200mm
◇ Compensation Free Trinocular Tube, Inclined at 30°, Interpupillary Distance 55-75mm
◇ High Point and Wide Field Eyepiece WF10/22
◇ Long Working Distance, Plan Apo Objectives 2X/0.055, 5X/0.14, 10X/0.28, 20X/0.29, 50X/0.42
Quintuple Nosepiece
◇ 6″Double Layers Mechanical Stage and circle stage
◇ Coaxial Coarse & Fin Focus Adjustment System, Fine Division 0.002mm
◇ Illumination System
Cold Light Fiber Reflected Illnminator: 12V150W
