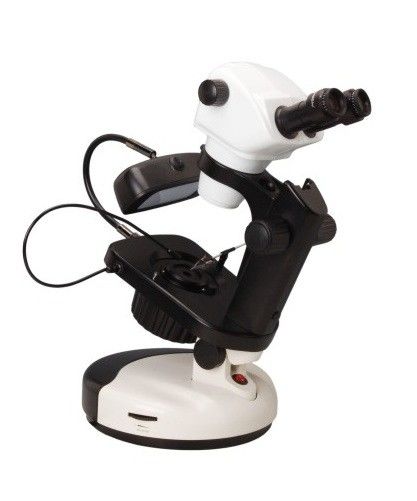

Specifications
Offering crisp sharp and high resolution image with bright dark ground illumination.
BodyStero Zoom:
Working distance 115mm
Zoom objective 0.8×-5× Zoom ratio 1:6.3
Eyepiece:
Extra wide field eyepiece WF15×/φ16 with diopter adjustment
IlluminationViewing FieldBright & Dark:
Bright and dark viewing field illumination adjustableIris diaphragm 2mm-41mm.
Illumination:
7W Fluorescent lamp
LED Point Light
6V/20W Halogen illumination
Focusing:
Suitable for observing different size gem and sample
Focusing range: 110mm
Gem Clamp:
Quality steel clamp to hold the gem for all direcition observations of gems
Stage:
Two gem clamp fixing holds for you to choose
Stand:
0-38°Rotatable, so the eyepoint height and angle is adjustable
Base:
0°-325°Rotatable
