XDS-1

Product Details:

Place of Origin:	Made in China

Payment & Shipping Terms:

Minimum Order Quantity:	NON
Price:	NON
Packaging Details:	STANDARD EXPORTING PACKING
Delivery Time:	ONE MONTH
Payment Terms:	T/T
Supply Ability:	1000 per month

Contact Now

Detailed Product Description

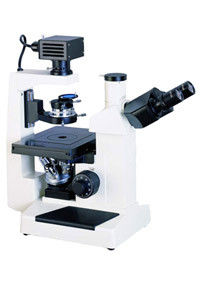

XDS-1 Inverted microscope is equipped with wide field eyepieces, long working distance plan achromatic objectives, long working distance
condenser and phase contrast unit. It can be observed transparent and unfinished living specimen in culture bottle or culture utensil. It is the ideal
instrument suitable for research of living specimen structure, liquid, deposits and so on. It also can be used in research institutes, universities, medical
treatment, agriculture and animal husbandry etc.

      Features

▲        Equipped with wide field eyepieces, long working distance plan achromatic objectives

▲        Equipped with phase contrast unit, include long working distance condenser, phase contrast objective and centering telescope

▲        Coaxial coarse/fine focus system with tensional adjustable and up stop, minimum division of fine focusing: 2μm

▲        6V 20W halogen lamp with brightness control

      Standard configuration

Model	XDS-1
Eyepiece	Wide field WF10X(¦µ20mm)
Objective	Long working distance plan achromatic PL L 10X/0.25
	Long working distance plan achromatic PL L 25X/0.40
	Long working distance plan achromatic PL L 40X/0.60
	Long working distance plan achromatic phase contrast objective PL L 10X/0.25 PHP
Eyepiece tube	Trinocular (Inclination of 30°, 100% image light for photography capable)
Focus system	Coaxial coarse/fine focus, with tensional adjustable and up stop minimum division of fine focusing: 2μm.
Nosepiece	Quadruple(Ball bearing inner locating)
Stage	Double layer mechanical(Size200mmX152mm,moving range:75mmX30mm)
Shelf of specimen	Match to install ¦µ68mm or 77mmX33mm culture utensil
Shelf of specimen	Match to install ¦µ68mm culture utensil
Filter	Blue filter
	Green filter
	Frosted filter
Impellent style phase contrast unit	Centering telescope
	10X Impellent style phase plate
	Condenser Rack & pinion adjustable, NA=0.4,working distance: 30mm
Light source	6V 20W Halogen lamp with brightness control.

Optional accessories

Name	Sort/Technique parameter		NO.
Eyepiece	WF16X(¦µ11mm)		1051016
	Dividing 10X(¦µ20mm), 0.1mm/Div		1120010
Nosepiece	Quintuple(Ball bearing inner locating)		032001
Condenser	Ultra long working distance,W.D.:70mm		050006
Filter	Yellow filter		115003
Impellent style phase contrast unit	Objectives	Long working distance plan achromatic phase contrast objective PL L 25X/0.40 PHP	2430125
		Long working distance plan achromatic phase contrast objective PL L 40X/0.60 PHP	2430140
	Impellent phase plate	25X	112002
		40X	112003
Sliding phase contrast unit	Objectives	Long working distance plan achromatic phase contrast objective PL L 10X/0.25 PHP2	2430310
		Long working distance plan achromatic phase contrast objective PL L 25X/0.40 PHP2	2430325
		Long working distance plan achromatic phase contrast objective PL L 40X/0.60 PHP2	2430340
	Sliding phase plate	10X	112004
		25X/40X	112005
	Condenser Rack & pinion adjustable, NA=0.4,working distance: 55mm		050007
CCD adapter	0.4X		812001
	0.5X		812004
	1X		812002
	0.5X with dividing 0.1mm/Div		812003
Camera	DV-1(With USB & video output)		800001
	DV-2(With USB output)		800003
	DV-3(With video output)		800005
Digital camera adapter	CANON digital camera adapter(A610,A620,A630,A640)		821001
Photograph unit	2.5X/4X Change over photograph attachment with 10X viewing eyepiece		840001
	4X Focusing photograph attachment		840002
	MD Adapter		840003
	PK Adapter		840004
